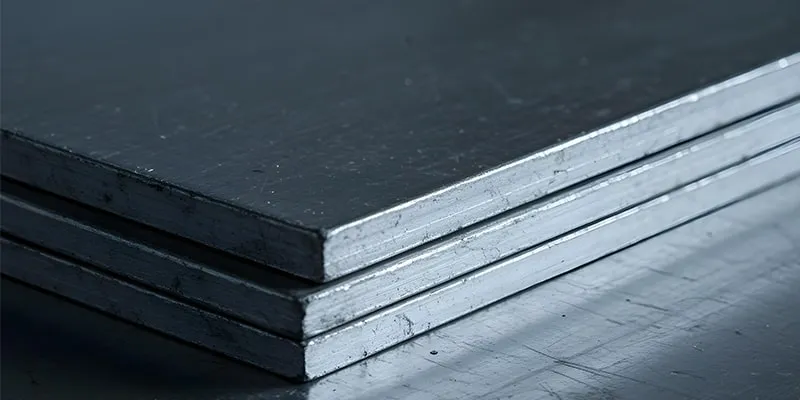

M.S. and G.I. Flats are essential in fabrication and structural work. Known for their straight edges and sturdy build, they’re commonly used in grills, gates, and base frames. While M.S. Flats offer good weldability, G.I. Flats add corrosion resistance, making both practical and dependable for everyday construction requirements.
Specifications
| THICKNESS (MM) | WEIGHT (KG/M) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SIZE (MM) | 3 | 5 | 6 | 8 | 10 | 12 | 16 | 18 | 20 | 22 | 25 |
| 12 | 0.3 | 0.5 | 0.6 | 0.8 | 0.9 | 1.1 | 1.5 | 1.7 | 1.9 | 2.1 | 2.4 |
| 16 | * | 0.6 | 0.8 | 1.0 | 1. | 1.5 | 2.0 | 2.3 | 2.5 | 2.8 | 3.1 |
| 20 | 0.6 | 0.8 | 0.9 | 1.3 | 1.6 | 1.9 | 2.5 | 2.8 | 3.1 | 3.5 | 3.9 |
| 25 | 0.8 | 1.0 | 1.2 | 1.6 | 2.0 | 2.4 | 3.1 | 3.5 | 3.9 | 4.3 | 4.9 |
| 32 | 1.1 | 1.3 | 1.5 | 2.0 | 2.4 | 3.0 | 4.0 | 4.5 | 5.0 | 5.5 | 6.3 |
| 35 | * | * | 1.6 | * | 2.8 | * | * | * | * | * | * |
| 40 | 1.4 | 1.6 | 1.9 | 2.5 | 3.1 | 3.8 | 5.0 | 5.7 | 6.3 | 6.9 | 7.8 |
| 45 | * | * | 2.1 | * | 3.5 | 4.2 | * | * | t | * | * |
| 50 | 1.7 | 2.0 | 2.4 | 3.1 | 3.9 | 4.7 | 6.3 | 7.1 | 7.8 | 8.6 | 9.8 |
| 53 | * | * | * | * | * | 6.6 | * | * | * | ||
| 56 | * | * | * | 7.0 | * | * | * | * | |||
| 63 | 2.5 | 3.0 | 4.0 | 4.9 | 5.9 | 7.9 | 8.9 | 9.9 | 10.9 | 12.4 | |
| 65 | * | * | 4.1 | 5.1 | 0.1 | * | * | 10.2 | * | * | |
| 75 | * | * | 4.7 | 5.9 | 7.1 | * | * | 11.8 | * | 14.7 | |
| 80 | 3.1 | 3.8 | 5.0 | 6.3 | 7.5 | 10.0 | 11.3 | 12.6 | 13.8 | 15.7 | |
| 100 | 3.9 | 4.7 | 6.3 | 7.8 | 9.4 | 12.6 | 14.0 | 15.7 | 17.5 | 19.6 | |
| 110 | * | * | * | * | * | * | * | 17.3 | * | * | * |
| 125 | 14.9 | 5.9 | 7.8 | 9.8 | 11.8 | 15.7 | 17.7 | 19.6 | 21.6 | 25.5 | |
| 150 | * | * | * | * | 14.1 | * | 18.8 | 13.6 | * | 29.4 | |
