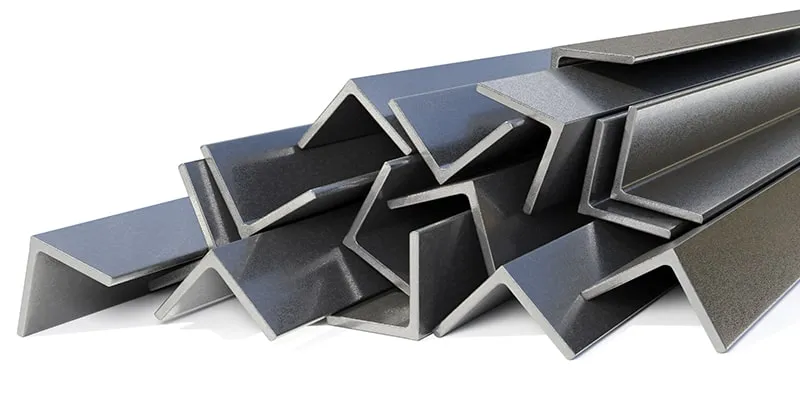

M.S. Angles, or Mild Steel Angles, are essential components widely used in construction and fabrication. Known for their strength and versatility, they provide solid structural support in buildings, bridges, and industrial frameworks. Easy to weld, cut, and drill, M.S. Angles are a reliable choice for long-lasting, cost-effective infrastructure projects.
Specifications
| Size (MM) | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 16 | 18 | 20 | 25 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 x 20 | 0.9 | 1.1 | - | - | - | - | - | - | - | - | " |
| 25 x 25 | 1.1 | 1.4 | 1.8 | 2.2 | - | - | " | ||||
| 30 x 30 | 1.4 | 1.8 | 2.2 | 2.8 | - | - | |||||
| 35 x 35 | 1.6 | 2.1 | 2.6 | 3.0 | - | - | " | ||||
| 40 x 40 | 1.8 | 2.4 | 3.0 | 3.5 | - | - | " | ||||
| 45 x 45 | 2.1 | 2.7 | 3.4 | 4.0 | - | - | " | ||||
| 50 x 50 | 2.3 | 3.0 | 3.8 | 4.5 | - | - | " | ||||
| 55 x 55 | 4.1 | 4.9 | 6.4 | - | " | ||||||
| 60 x 60 | 4.5 | 5.4 | 7.0 | 8.6 | " | ||||||
| 65 x 65 | 4.9 | 5.8 | 7.7 | 9.4 | - | " | |||||
| 75 x 75 | 5.7 | 6.8 | 8.9 | 11.0 | - | " | |||||
| 80 x 80 | 7.3 | 9.6 | 11.8 | 14.0 | " | ||||||
| 90 x 90 | 8.2 | 10.8 | 13.4 | 15.8 | " | ||||||
| 100 x 100 | 9.2 | 12.1 | 14.9 | 17.7 | " | ||||||
| 110 x 110 | 13.4 | 16.5 | 19.6 | 24.2 | " | ||||||
| 130 x 130 | 15.9 | 19.7 | 23.4 | 28.9 | " | ||||||
| 150 x 150 | 22.8 | 27.2 | 35.8 | 39.9 | 44.1 | " | |||||
| 200 x 200 | 36.6 | 48.5 | 54.0 | 60.0 | 73.6 |
